2-Pole Coil 110v Contactors
2-ncej coil 110v contactors - hluav taws xob tswj kev hloov pauv rau ob lub voj voog. Muaj 2 Tsis muaj kev sib cuag tseem ceeb. Siv rau ib-theem loads, teeb pom kev zoo, cua sov, me me motors . 110V AC coil (50/60 Hz) energizes kaw cov neeg. Compact, txhim khu kev qha, nrog yeem aux. hu rau signaling/interlocking. Siv dav hauv kev tswj vaj huam sib luag, HVAC, automation - txhawb kev hloov chaw taws teeb & tiv thaiv overload (ntawm thermal relay).
Hauj lwm lawm
Product Overview
Peb 2- ncej coil 110v contactors yog compact electromechanical switching device engineered rau txhim khu kev qha tswj ntawm ob tug ywj siab circuits ib txhij. Featuring 2 ib txwm qhib (NO) cov neeg sib cuag tseem ceeb, nws yog qhov tsim nyog rau kev tswj hwm ib qho -theem loads, resistive heating elements, lighting banks, and fractional horsepower motors. Lub 110V AC coil (50/60 Hz) ua kom lub zog qis nrog lub zog tuav, xa cov kev ua tau zoo sib xws thoob plaws qhov hloov pauv voltage.
Ntsiab nta
- Dual-Circuit Control: 2-ncej tsim ua rau tib lub sijhawm ua / tawg ntawm ob kab - zoo meej rau theem thiab nruab nrab hloov.
- 110V AC Coil: Standard industrial voltage nrog ua - nyob rau hauv surge suppression rau txuas lub neej coil.
- Modular & Chaw-Txuag: Cov hneev taw me me haum yooj yim rau hauv cov neeg coob coob tswj vaj huam sib luag thiab DIN-rail mounting systems.
- Kev Pabcuam Tiv Thaiv Kev Xaiv: Kev xaiv ntxiv- ntawm cov kev pabcuam pabcuam (1NO+1NC) pab txhawb kev tawm tswv yim, kev cuam tshuam, lossis PLC kev koom ua ke.
- Overload Compatibility: ncaj qha ua khub nrog thermal overload relays rau kev tiv thaiv lub cev muaj zog.
- Durable Construction: Silver-alloy contacts resist welding and arcing, rated for >100,000 hluav taws xob ua haujlwm.
Tej kev siv
- HVAC compressor thiab kiv cua tswj
- Conveyor systems thiab cov tshuab me me
- Teeb pom kev zoo faib vaj huam sib luag
- Muaj qhov cub thiab lub tsev txhab nyiaj tso cua sov
- Pump tswj chaw nres tsheb
Technical Specifications
|
Parameter |
Tus nqi |
|
Ncej |
2 |
|
Chev Voltage |
24VAC / 120VAC / 240VAC |
|
Ntau zaus |
50/60 Hz |
|
Rated Tam sim no |
20A / 25A / 30A / 40A |
|
Neeg kho tshuab lub neej |
Ntau dua lossis sib npaug li 5 lab kev ua haujlwm |
|
Hluav taws xob lub neej |
Ntau dua lossis sib npaug rau 100,000 kev ua haujlwm (ntawm cov khoom ntsuas ntsuas) |
|
Mounting |
vaj huam sib luag mount |
|
Ambient Temp |
-5℃rau +60 degree |
Vim li cas thiaj xaiv 2-ncej coil 110v contactorslos ntawmPeb
- Tag nrho ua raws li CE, UL, thiab CCC cov qauv
- Npaj txhij rau tib - hnub xa tawm ntawm cov tsev khaws khoom
- Kev sau npe ntiag tug thiab tus kws txiav txim siab -ua cov ntim khoom raws li kev thov
- Rov qab los ntawm 2- xyoo lav thiab kev txhawb nqa tom qab muag
Tsis muaj
|
Qauv |
No.of |
Rated (A) |
Coil (V) |
Case (Pcs) |
|
DCK3-20/2P 24V |
2P |
20 |
24 |
40 |
|
DCK3-20 / 2P 120V 3 |
2P |
20 |
120 |
40 |
|
DCK3-20 / 2P 240V 3 |
2P |
20 |
240 |
40 |
|
DCK3-25/2P 24V |
2P |
25 |
24 |
40 |
|
DCK3-25 / 2P 120V 3 |
2P |
25 |
120 |
40 |
|
DCK3-25 / 2P 240V |
2P |
25 |
240 |
40 |
|
DCK3-30/2P 24V |
2P |
30 |
24 |
40 |
|
DCK3-30/2P 120V |
2P |
30 |
120 |
40 |
|
DCK3-30/2P240V |
2P |
30 |
240 |
40 |
|
DCK3-40/2P 24V |
2P |
40 |
24 |
40 |
|
DCK3-40/2P 120V |
2P |
40 |
120 |
40 |
|
DCK3-40 / 2P 240V |
2P |
40 |
240 |
40 |

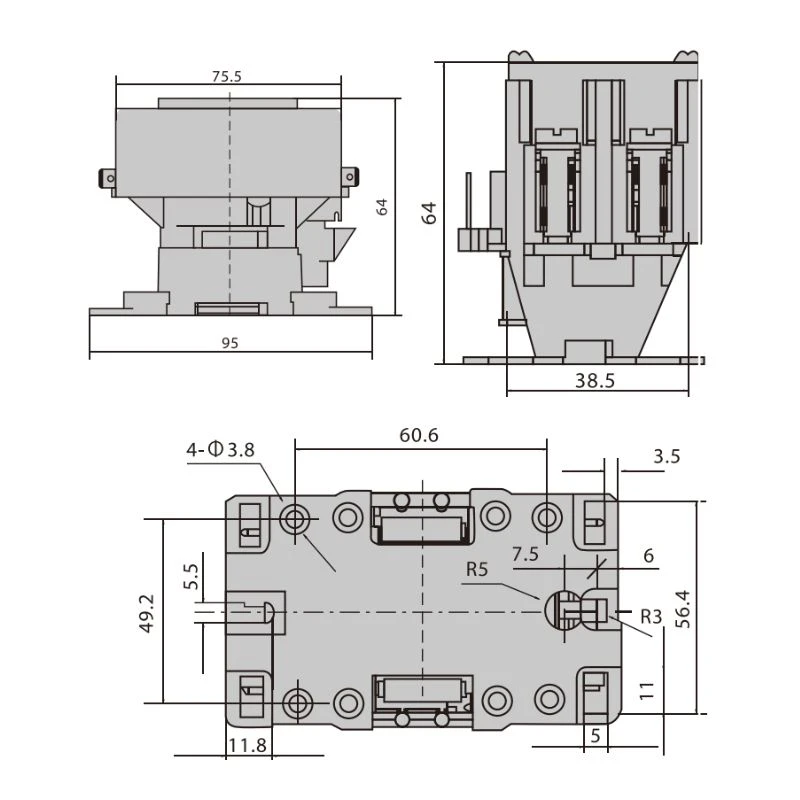

Qhov Loj (mm)
